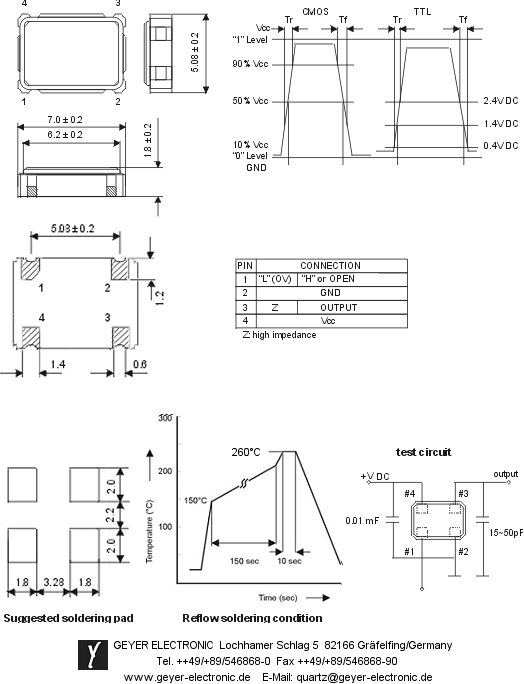

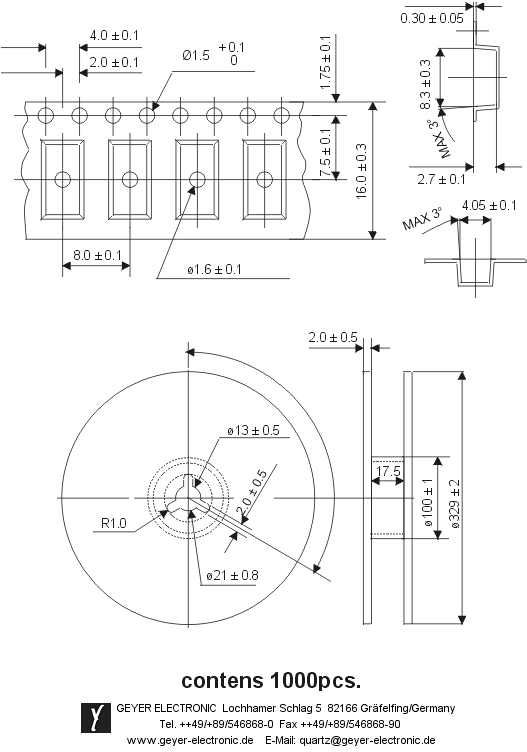

KXO-V97 Part-no.: 12.94277 Description Value frequency MHz 50 frequency stability at -20° ~ +70°C in ppm ±50 operating temperature in °C -20 ~ +70 input voltage Vcc in V ± tolerance in % 3,3 ± 10 storage temperature in °C -40 ~ +85 symmetry at ½ Vcc level in % 50 ± 10 rise & fall time in ns max. 6 "O" level in V max. +0,4 "1" level Vcc in V min. -0,5 input current in mA max. 18 output load in pF 30 start up time max. in ms 10 tristate funcion yes enable/disable delay time in ns max. 100 random jitter in ps max. 7 peak to peak jitter in ps max. 40 size l/w/h in mm 7,0/5,08/1,8 contents of reel in pcs. 1000 RoHS since production start yes - Datasheet pdf
